Nylon filter membrane

Name: Nylon Filter Membrane, PA Filter Membrane, Polyamide Filter Membrane

Type: Single-layer cast membrane.

Material: 100% polyamide 66, homogeneous.

Properties: Hydrophilic (naturally)

Pressure: Operating pressure <0.6 MPa (long-term)

Temperature: <130°C (normal), steam sterilizable.

Chemical: Resistant to common chemicals, *Not resistant to strong acids and polar solvents. (such as NMP, DMAC).

Welding: Adhesive bonding, hot press lamination, low-frequency ultrasonic welding.

Working way: deep retention, core interception of the membrane.

* The intercepted media will be retained in the core layer of the membrane and discarded together, which may cause media loss.

* If not, please click (UHMW-POF) to view our surface interception type membrane.

Model (HGL-1-NY) and Base Data:

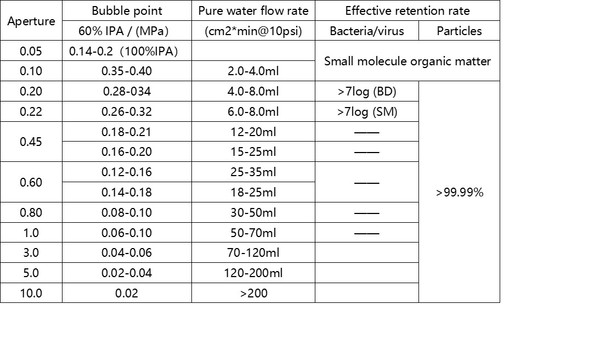

* PMI pore size analysis: pore size range, average pore size, porosity.

* Pore size retention efficiency: Standard particle count.

* Molecular weight cutoff efficiency: Bovine serum albumin, PEG.

* Surface properties: Contact angle measurement.

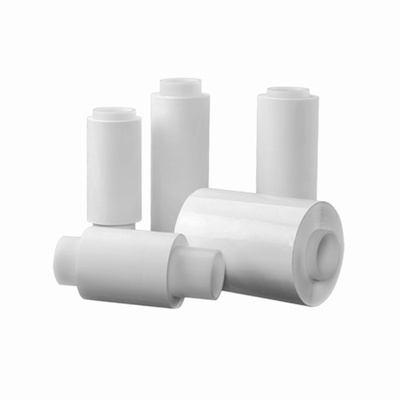

Standard Size: (Roll)

Width: 254-508mm （customizable）

Length: 100m (min)

Related Documents:    How to Choose a Filter Membrane‍    |        Request Product documemt

Applications:

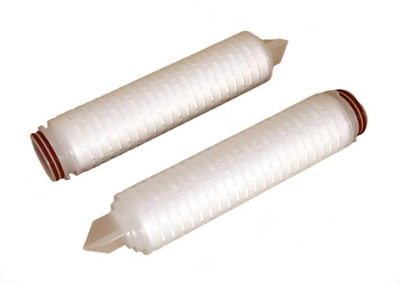

1. Cutting long rolls into short rolls for manufacturing pleated filter elements.

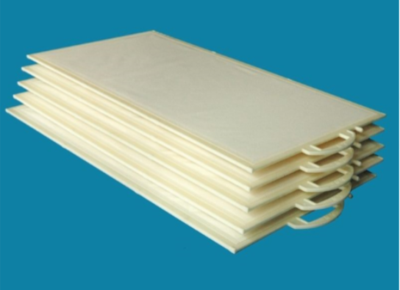

2. Cutting long rolls into square or round sheets for various filter consumables.

3. For aqueous and organic liquid filtration：

* Water treatment

* Oil filtration

* Non-polar solvent filtration

* Alkaline or neutral chemical liquid filtration

* Non-viscous organic liquid filtration

4，Gas filtration

5，Pharmaceutical, biological, testing and analysis applications.

1. Unique asymmetric microstructure with large surface pores, small core pores, and funnel-shaped channels.

2. Core-layer interception operation provides high impurity retention, slow flow rate drop, and long replacement cycles.

3. Low pressure loss and higher flow rate.

4. Pure material, no shedding or leaching, suitable for food, pharmaceutical, life science, and testing and analysis applications.

5. High cost-effectiveness for less demanding filtration applications.

                                                                                                                            Microstructure: Asymmetric.
