PTFE filter membrane

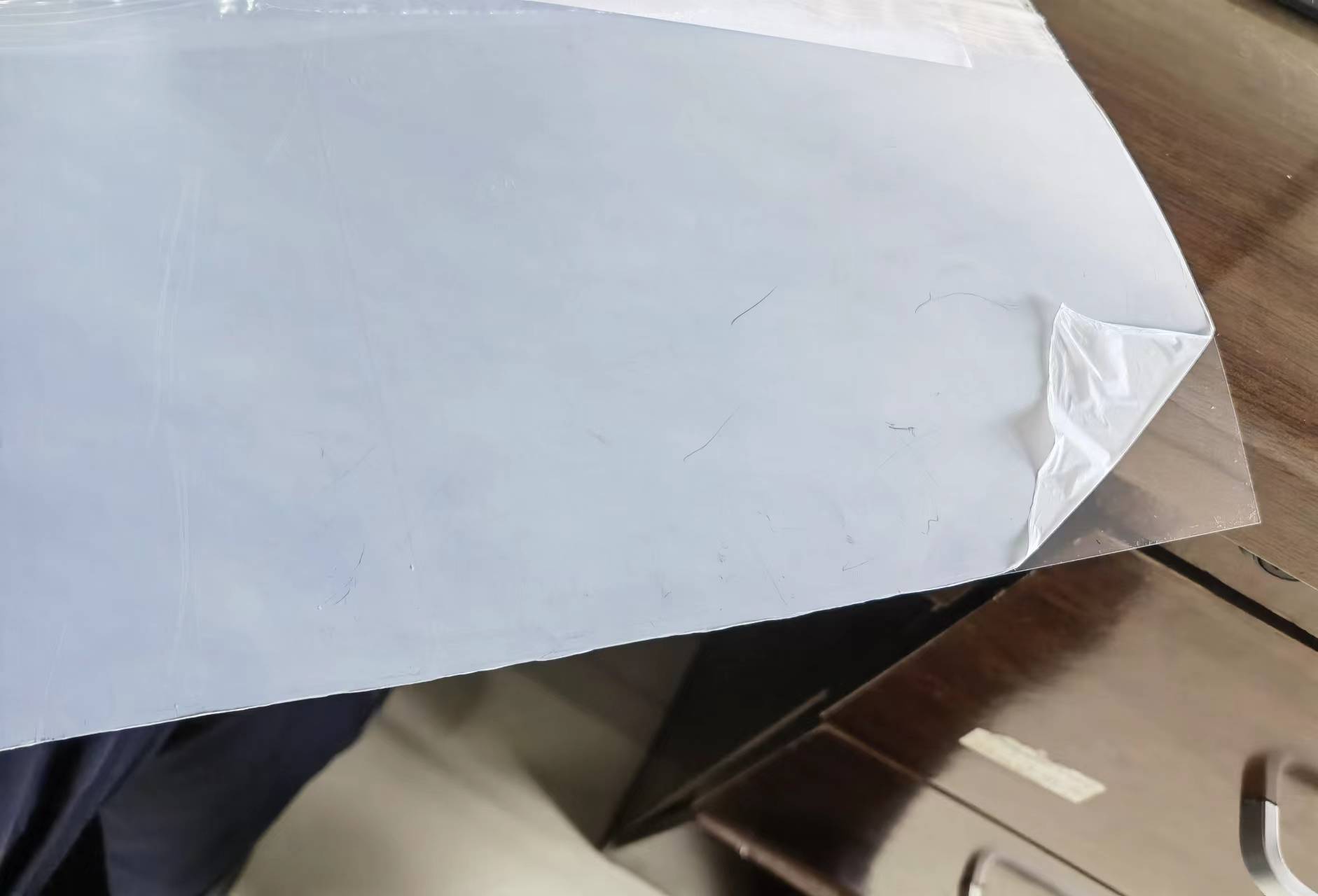

1. ePTFE Filtration Membrane

Model: HGL-1-EP

Type: Flat roll film, single-layer porous membrane.

Material: 100% PTFE (biaxially stretched), PFAS & PFOA-free.

Pore Forming Process: Biaxially Stretchable.

Surface Properties: Naturally hydrophobic, hydrophilic (modified).

Specifications and Basic Data:

Pore Size Range: 0.05-10.0µm, Porosity >50%.

Thickness Range: 10-40um

Roll size: width 254-1000mm, length >=200mtr, core 3“ （76.2mm) tube.

______________________________________________________________________________________________________________________________

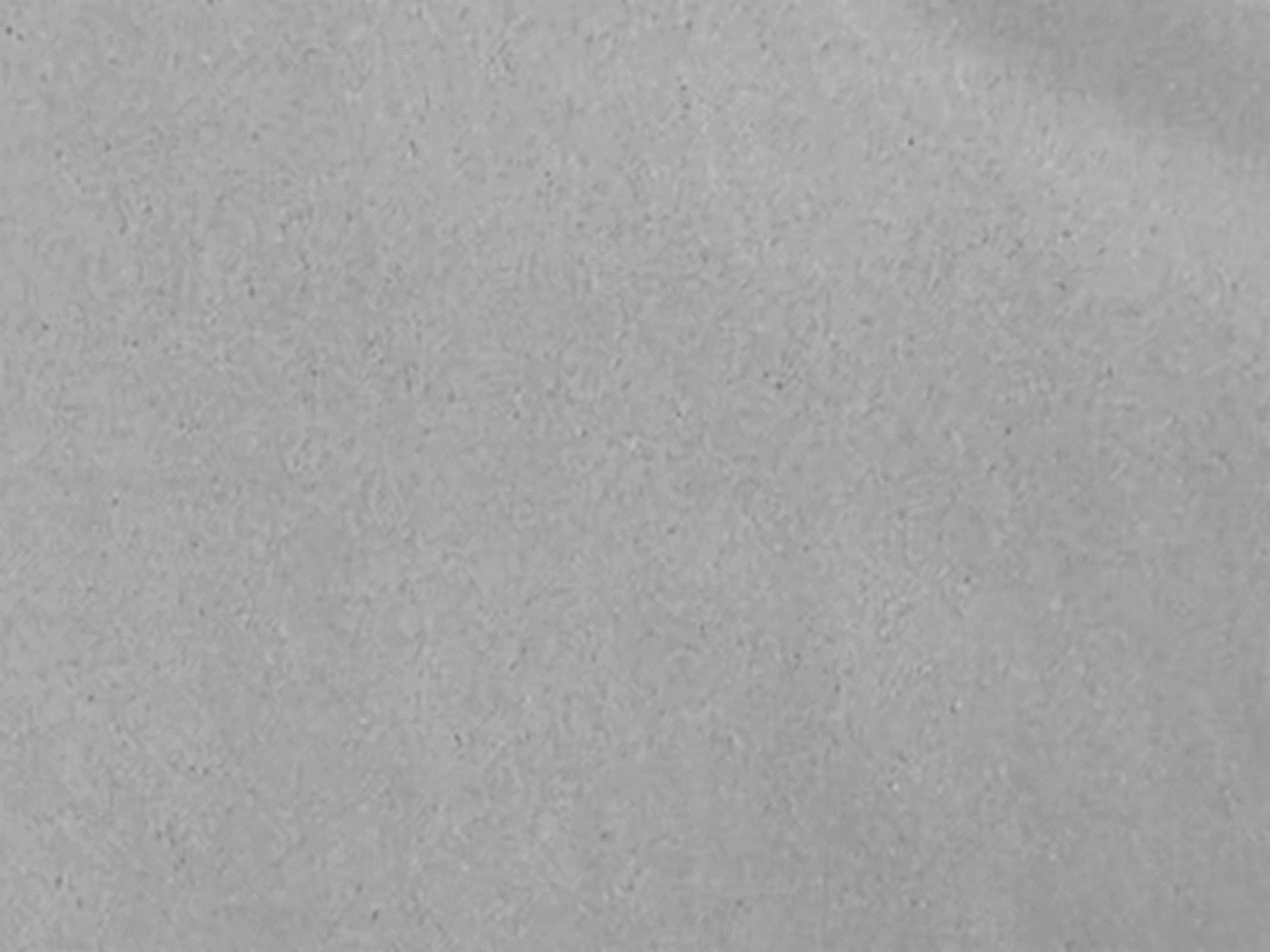

2. sPTFE Filter Membrane

Model HGL-1-SP

Type: Flat sheet or short roll, single-layer porous membrane.

Material: 100% PTFE (sintered), PFOA/PFAS-free.

Pore Forming Process: High-temperature sintering. No additives.

Surface Properties: Naturally hydrophobic, hydrophilic (modified).

Specifications and Basic Data:

Pore Size Range: 1.0-50µm, Porosity >50%.

Thickness Range: 0.2-1.0mm

Bubble Point Pressure: Based on the corresponding pore size and thickness.

Air Permeability: Based on the corresponding pore size, porosity, and thickness.

Applications of ePTFE filter membrane:

* Thermally laminated with non-woven (PP/PE/PET) to produce PTFE composite filtration membranes.

* Laminated with PFA mesh/ECTFE meltblown fabric to produce perfluoroelastomer filtration membranes.

Retention layer（front)

Support layer (back)

Applications of sPTFE filter membrane:

* High-temperature liquid filtration

* High-viscosity liquid filtration

* High-concentration chemical liquid filtration (acids, alkalis, salts)

* Pure solvent filtration

* High-pressure saturated steam filtration

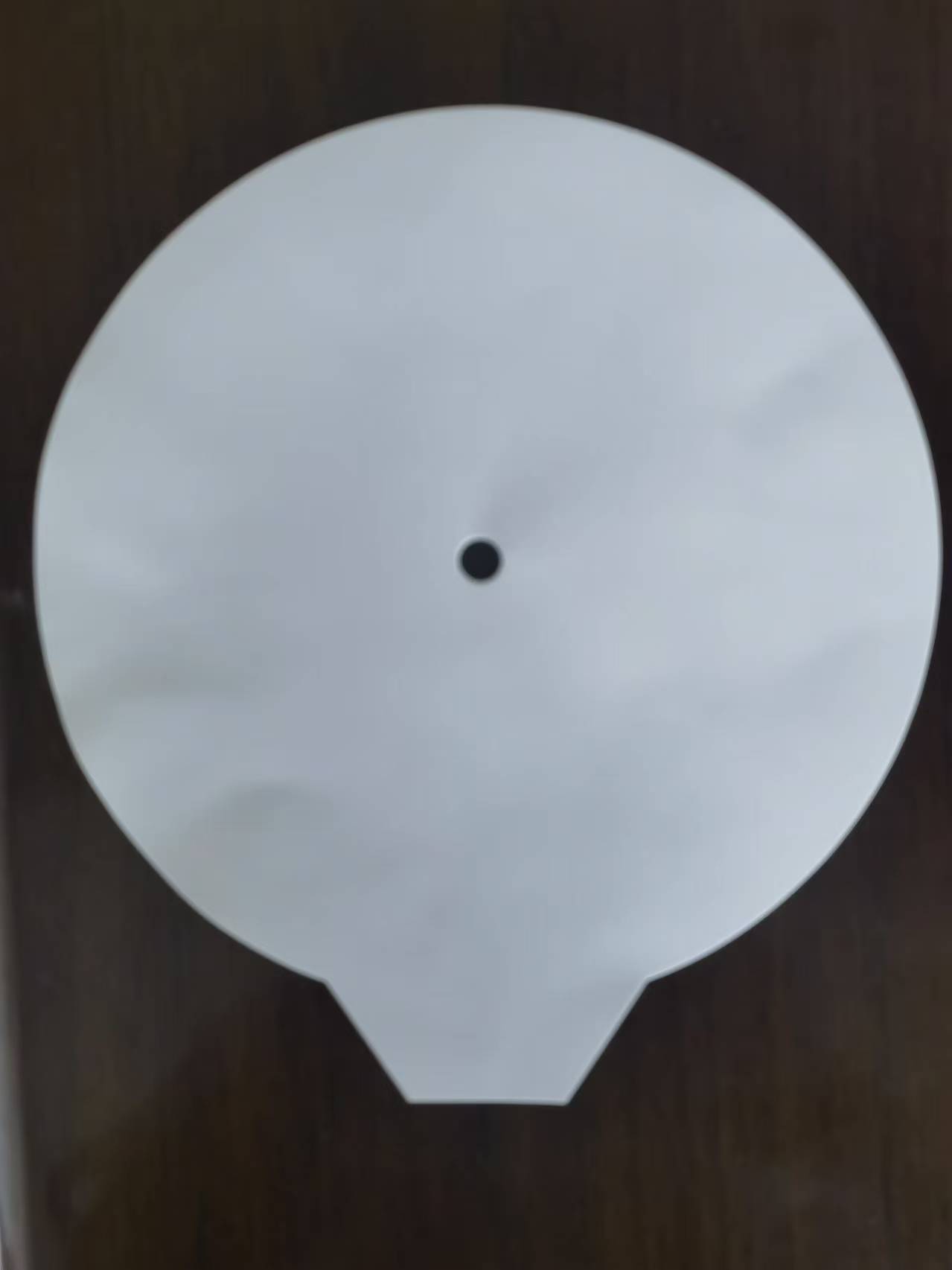

      Round filter sheet                                   Steam sterilization container                              Square filter sheet

Contact:    Application Consulting

Features and advantages of ePTFE membrane:

* Uniform microstructure, high porosity (80-88%), low resistance.

* High surface tension, resists adhesion and contamination.

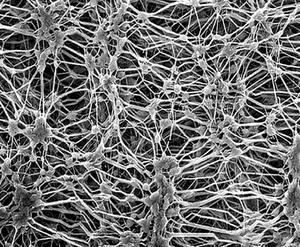

                         ePTFE Surface                                                              ePTFE Microstructure

Features and advantages of sPTFE membrane:

Core: Honeycomb-like, with regular pore and channel shapes, uniform pore distribution, tight tolerances, high retention accuracy.

Surface: Smooth, low-adhesion, resistant to contamination, chemically cleanable and recyclable (<2000 times).

Resistant to 99% of chemicals and temperature-resistant >230°C.

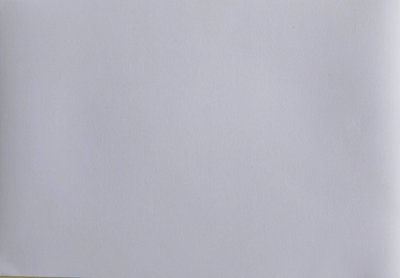

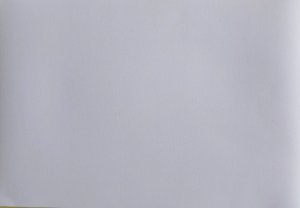

                          sPTFE Surface                                                               sPTFE Microstructure
