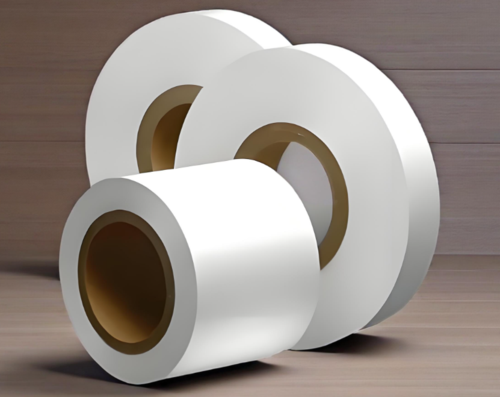

battery separator

Model HGM-1-DC
Type non-ionic separator
Material homogeneous polymer
Color white
Brand HHS TECH
Packing Plastic tube +Carton
Shape Flat sheet, Roll
Core: 3" Plastic tube
Product Details
Application
Advantages

Name: Battery separator, Battery diaphragm,


Functional group: neutral, non-ionic type.



Types:


1, Single-layer porous membrane, non-laminated, non-fibrous structure.


2, Wet-process ultrafine nanofiber laminated membrane.




Model and basic data:

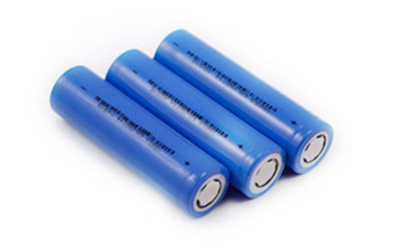

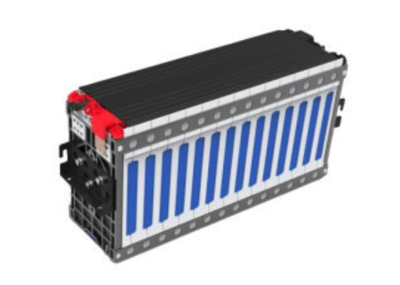

                                    3C batterie                                                               Power batterie

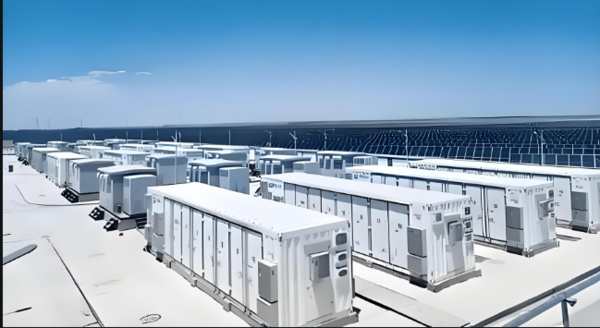

                                                                          Energy storage batterie



Lithium battery, Alkaline nickel-based , Manganese-based battery, Acidic sodium ion battery, Zinc-bromine battery, etc.






Performance advantages:


Wettability:


After hydrophilic treatment, water has a low contact angle and rapid horizontal diffusion.


* Water climbs quickly vertically, with a strong capillary effect and high-temperature moisture retention. (Customizable)


Airtightness:


After wetting, the membrane forms a complete water curtain, preventing gases from permeating and mixing on both sides.


Deformation Resistance:


Low volume expansion upon wetting and minimal chemical swelling.


Ion Permeability:


After wetting, no air remains within the pores and channels, allowing ions to pass through unimpeded.


The thin thickness and straight, independent channels minimize ion travel and prevent ion stagnation.


Safety:


The hole diameter tolerance is tight, preventing short circuits.


The microstructure is non-favorable for dendrite formation and growth.


When the temperature exceeds the melting point of the material, the pores automatically close, severing the circuit.



Quality and price advantages:

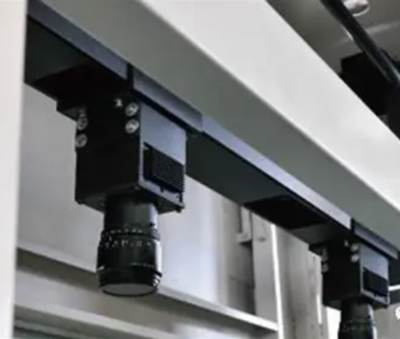

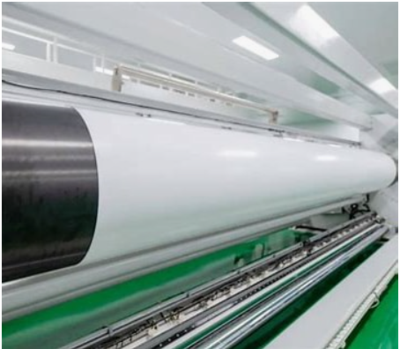

电池隔膜产线图片4.png        电池隔膜产线图片3.png


              Capacity: 200K sqm/d, low average cost.                                             Quality: Online electronic testing, stable quality.
